Special Electrical Mounding Compounds PT-205 Special Phenolic Molding Compound

Brand Name : N/A

Model Number : MU-100

Certification : UL

Place of Origin : China

MOQ : 1000KG

Price : To be negotiated

Payment Terms : T/T

Delivery Time : 7 DAYS

Packaging Details : 25 kg/Bag

Molding method : Injection

Color : Black

State : Granular

Advantage : Very high wear resistance

Contact Now

Special electrical mounding compounds PT-205, Special phenolic molding compound

Characteristics : The plastic molding compound has excellent wear resistance, good dimensional stability; the surface of product is smooth and shiny. The storage time is a year at room temperature.

Advantage: very high wear resistance, excellent long-term dimensional stability even at elevated temperature

Applications: Mainly used for wear-resistant parts about the contact wheel bracket, pulley, manipulation of the mechanical and electrical products.

Technical data:

Property	Unit	Test standard	PT-205
Density	g/cm³	GB/T1033	1.40-1.70
Water absorption	mg	GB/T1034	≤80
Moulding shrinkage	%	JB/T3958.2	0.60-1.00
Charpy impact strength	kJ/m²	GB/T1043	≥6.0
Charpy notch impact strength	kJ/m²	GB/T1043	≥2.2
Flexural strength	MPa	GB/T9341	≥60
Surface resistivity	Ω	GB/T1410	≥10⁹
Volume resistivity	Ω.m	GB/T1410	≥10⁷
Deflection temperature	℃	GB/T1634	≥150
Dielectric strength	MV/m	GB/T1408	≥10

PT-205 Molding condition for injection(for reference)

	Injection Moulding Parameters		Unit		Range
	Molding temperature		℃		160～180
	Barrel temperature	Feed zone	℃		70～90
		Nozzle zone	℃		90～110
	Injection Pressure		MPa		60～100
	Curing time		s/mm		10～20
Moulding Parameters				Unit		Range
Molding temperature				℃		160～180
Pressure				MPa		15～20
Curing time				s/mm		40～60

Product Tags:

Special phenolic mounding compounds

PT-205 mounding compounds

Special electrical mounding compounds

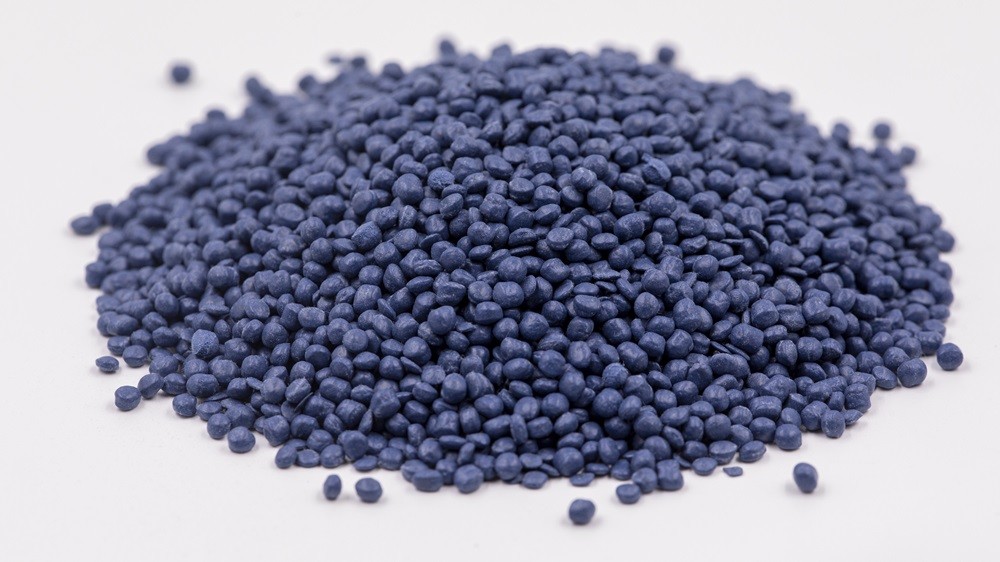

Special Electrical Mounding Compounds PT-205 Special Phenolic Molding Compound Images
